Angular 5/ASP.NET Core: The Best of Both Worlds

Microsoft and Google have worked together since Angular 2, rendering ASP.NET Web Forms and MVC Razor obsolete. Nevertheless, while ASP.NET’s front-end tools may be lacking, it is still a great back-end framework.

In this article, Toptal Freelance Angular Developer Pablo Albella teaches us how to create the best architecture for both these worlds.


Toptalauthors are vetted experts in their fields and write on topics in which they have demonstrated experience. All of our content is peer reviewed and validated by Toptal experts in the same field.

Microsoft and Google have worked together since Angular 2, rendering ASP.NET Web Forms and MVC Razor obsolete. Nevertheless, while ASP.NET’s front-end tools may be lacking, it is still a great back-end framework.

In this article, Toptal Freelance Angular Developer Pablo Albella teaches us how to create the best architecture for both these worlds.


Toptalauthors are vetted experts in their fields and write on topics in which they have demonstrated experience. All of our content is peer reviewed and validated by Toptal experts in the same field.
Pablo Albella
Verified Expert in Engineering

Pablo is a talented JavaScript and .NET developer. He successfully created numerous complex products over the past decade.

Read More

PREVIOUSLY AT

Globant
Share

I’ve been thinking about writing a blog post since the first version of Angular practically killed Microsoft on the client side. Technologies like ASP.NET, Web Forms, and MVC Razor have become obsolete, replaced by a JavaScript framework that’s not exactly Microsoft. However, since the second version of Angular, Microsoft and Google have been working together to create Angular 2, and this is when my two favorite technologies started working together, allowing the use of Angular with .NET Core.

In this blog, I want to help people create the best architecture combining ASP.NET Core with Angular. Are you ready? Here we go!

About the Angular 5/ASP.NET Core Architecture

You will build an Angular 5 client that consumes a RESTful Web API Core 2 service.

The client side:

  • Angular 5
  • Angular CLI
  • Angular Material

The server side:

  • .NET C# Web API Core 2
  • Injection dependencies
  • JWT authentication
  • Entity framework code first
  • SQL Server

Note

In this blog post we are assuming the reader already has basic knowledge of TypeScript, Angular modules, components, and importing/exporting. The goal of this post is to create a good architecture that will allow for the code to grow over time.

What Do You Need for Your .NET/Angular project?

Let’s start by choosing the IDE. Of course, this is just my preference, and you can use the one you feel more comfortable with. In my case, I will use Visual Studio Code and Visual Studio 2017.

Why two different IDEs? Since Microsoft created Visual Studio Code for the front end, I cannot stop using this IDE. Anyway, we will also see how to integrate Angular 5 inside the solution project, that will help you if you are the kind of developer who prefers to debug both back end and front with just one F5.

About the back end, you can install the latest Visual Studio 2017 version which has a free edition for developers but is very complete: Community.

So, here the list of things we need to install for this tutorial:

Note

Verify that you are running at least Node 6.9.x and npm 3.x.x by running node -v and npm -v in a terminal or console window. Older versions produce errors, but newer versions are fine.

The Front End

Quick Start

Let the fun begin! The first thing we need to do is install Angular CLI globally, so open the node.js command prompt and run this command:

npm install -g @angular/cli

Okay, now we have our module bundler. This usually installs the module under your user folder. An alias should not be necessary by default, but if you need it you can execute the next line:

alias ng="<UserFolder>/.npm/lib/node_modules/angular-cli/bin/ng"

The next step is to create the new project. I will call it angular5-app. First, we navigate to the folder under which we want to create the site, and then:

ng new angular5-app

First Build

While you can test your new website just running ng serve --open, I do recommend testing the site from your favorite web service. Why? Well, some issues can happen only in production, and building the site with ng build is the closest way to approach this environment. Then we can open the folder angular5-app with Visual Studio Code and run ng build on the terminal bash:

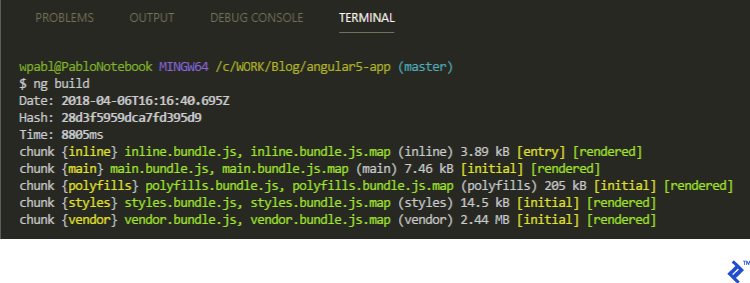

building the angular app for the first time

A new folder called dist will be created and we can serve it using IIS or whichever web server you prefer. Then you can type the URL in the browser, and…done!

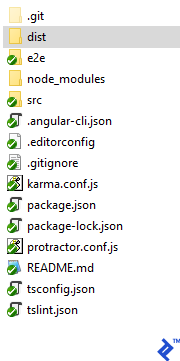

the new directory structure

Note

It is not the purpose of this tutorial to show how to set up a web server, so I assume you already have that knowledge.

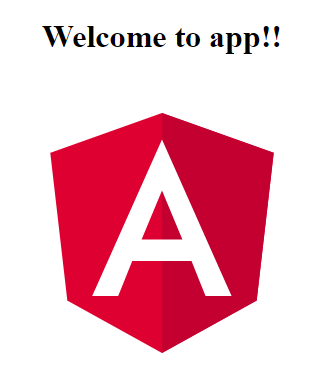

Angular 5 Welcome Screen

The src Folder

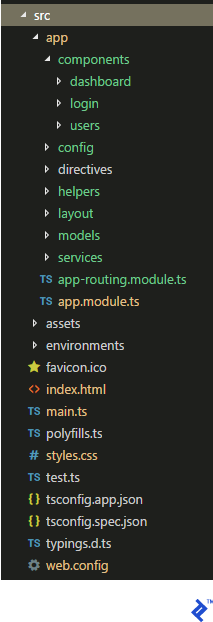

The src folder structure

My src folder is structured as follows: Inside the app folder we have components where we will create for each Angular component the css, ts, spec, and html files. We will also create a config folder to keep the site configuration, directives will have all our custom directives, helpers will house common code like the authentication manager, layout will contain the main components like body, head, and side panels, models keeps what will match with the back-end view models, and finally services will have the code for all the calls to the back end.

Outside the app folder we will keep the folders created by default, like assets and environments, and also the root files.

Creating the Configuration File

Let’s create a config.ts file inside our config folder and call the class AppConfig. This is where we can set all the values we will use in different places in our code; for instance, the URL of the API. Note that the class implements a get property which receives, as a parameter, a key/value structure and a simple method to get access to the same value. This way, it will be easy to get the values just calling this.config.setting['PathAPI'] from the classes that inherit from it.

import { Injectable } from '@angular/core';
@Injectable()
export class AppConfig {
    private _config: { [key: string]: string };
    constructor() {
        this._config = {
            PathAPI: 'http://localhost:50498/api/'
        };
    }
    get setting():{ [key: string]: string } {
        return this._config;
    }
    get(key: any) {
        return this._config[key];
    }
};

Angular Material

Before starting the layout, let’s set up the UI component framework. Of course, you can use others like Bootstrap, but if you like the styling of Material, I do recommend it because it’s also supported by Google.

To install it, we just need to run the next three commands, which we can execute on the Visual Studio Code terminal:

npm install --save @angular/material @angular/cdk
npm install --save @angular/animations
npm install --save hammerjs

The second command is because some Material components depend on Angular Animations. I also recommend reading the official page to understand which browsers are supported and what a polyfill is.

The third command is because some Material components rely on HammerJS for gestures.

Now we can proceed to import the component modules we want to use in our app.module.ts file:

import {MatButtonModule, MatCheckboxModule} from '@angular/material';
import {MatInputModule} from '@angular/material/input';
import {MatFormFieldModule} from '@angular/material/form-field';
import {MatSidenavModule} from '@angular/material/sidenav';
// ...
@NgModule({
  imports: [
    BrowserModule,
    BrowserAnimationsModule,
    MatButtonModule,
    MatCheckboxModule,
    MatInputModule,
    MatFormFieldModule,
    MatSidenavModule,
    AppRoutingModule,
    HttpClientModule
  ],

Next step is to change the style.css file, adding the kind of theme you want to use:

@import "~@angular/material/prebuilt-themes/deeppurple-amber.css";

Now import HammerJS by adding this line in the main.ts file:

import 'hammerjs';

And finally all we’re missing is to add the Material icons to index.html, inside the head section:

<link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet">

The Layout

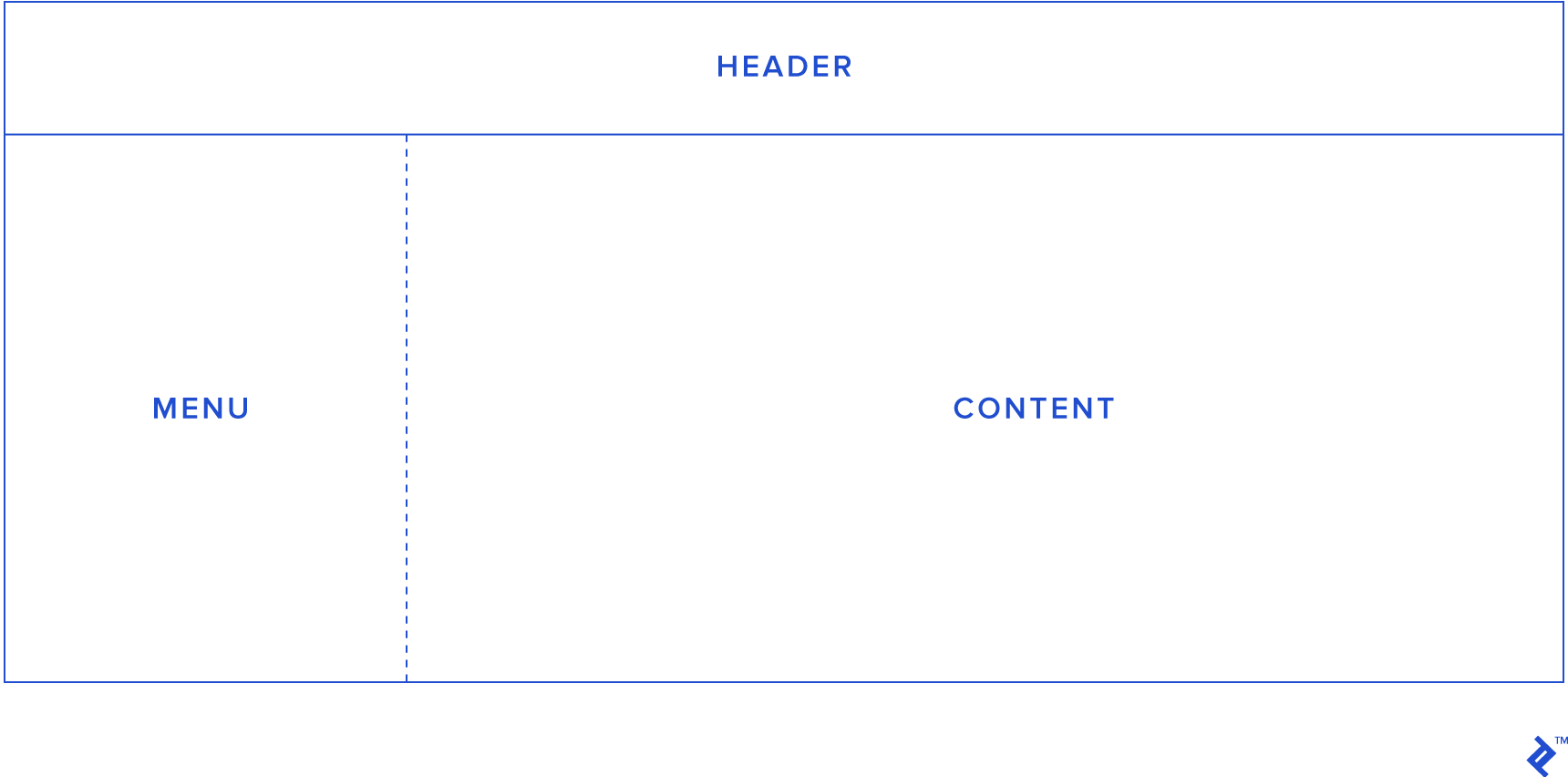

In this example, we will create a simple layout like this:

Layout example

The idea is to open/hide the menu by clicking on some button on the header. Angular Responsive will do the rest of the work for us. To do this we will create a layout folder and put inside it the app.component files created by default. But we will also create the same files for each section of the layout like you can see in the next image. Then, app.component will be the body, head.component the header, and left-panel.component the menu.

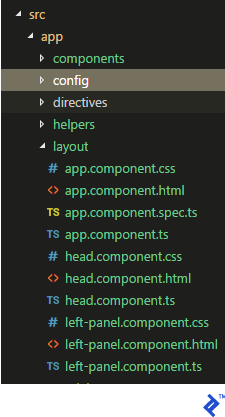

Highlighted config folder

Now let’s change app.component.html as follows:

<div *ngIf="authentication">
  <app-head></app-head>
  <button type="button" mat-button (click)="drawer.toggle()">
    Menu
  </button>
  <mat-drawer-container class="example-container" autosize>
    <mat-drawer #drawer class="example-sidenav" mode="side">
      <app-left-panel></app-left-panel>
    </mat-drawer>
    <div>
      <router-outlet></router-outlet>
    </div>
  </mat-drawer-container>
</div>
<div *ngIf="!authentication"><app-login></app-login></div>

Basically we will have an authentication property in the component which will allow us to remove the header and the menu if the user is not logged in, and instead, show a simple login page.

The head.component.html looks like this:

<h1>{{title}}</h1>
<button mat-button [routerLink]=" ['./logout'] ">Logout!</button>

Just a button to log the user out—we will come back to this again later. As for left-panel.component.html, for now just change the HTML to:

<nav>
    <a routerLink="/dashboard">Dashboard</a>
    <a routerLink="/users">Users</a>
  </nav>

We’ve kept it simple: So far it’s just two links to navigate through two different pages. (We will also return to this later.)

Now, this is what the head and the left-side component TypeScript files look like:

import { Component } from '@angular/core';
@Component({
  selector: 'app-head',
  templateUrl: './head.component.html',
  styleUrls: ['./head.component.css']
})
export class HeadComponent {
  title = 'Angular 5 Seed';
}
import { Component } from '@angular/core';
@Component({
  selector: 'app-left-panel',
  templateUrl: './left-panel.component.html',
  styleUrls: ['./left-panel.component.css']
})
export class LeftPanelComponent {
  title = 'Angular 5 Seed';
}

But what about the TypeScript code for app.component? We will leave a little mystery here and pause it for a while, and come back to this after implementing authentication.

Routing

Okay, now we have Angular Material helping us with the UI and a simple layout to start building our pages. But how can we navigate between pages?

In order to create a simple example, let’s create two pages: “User,” where we can get a list of the existing users in the database, and “Dashboard,” a page where we can show some statistics.

Inside the app folder we will create a file called app-routing.modules.ts looking like this:

import { NgModule }             from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
import { AuthGuard }                from './helpers/canActivateAuthGuard';
import { LoginComponent }   from './components/login/login.component';
import { LogoutComponent }   from './components/login/logout.component';
import { DashboardComponent }   from './components/dashboard/dashboard.component';
import { UsersComponent }      from './components/users/users.component';
const routes: Routes = [
  { path: '', redirectTo: '/dashboard', pathMatch: 'full', canActivate: [AuthGuard] },
  { path: 'login', component: LoginComponent},
  { path: 'logout', component: LogoutComponent},
  { path: 'dashboard', component: DashboardComponent, canActivate: [AuthGuard] },
  { path: 'users', component: UsersComponent,canActivate: [AuthGuard] }
];
@NgModule({
  imports: [ RouterModule.forRoot(routes) ],
  exports: [ RouterModule ]
})
export class AppRoutingModule {}

It’s that simple: Just importing RouterModule and Routes from @angular/router, we can map the paths we want to implement. Here we are creating four paths:

  • /dashboard: Our home page
  • /login: The page where the user can authenticate
  • /logout: A simple path to log the user out
  • /users: Our first page where we want to list the users from the back end

Note that dashboard is our page by default, so if the user types the URL /, the page will redirect automatically to this page. Also, take a look at the canActivate parameter: Here we are creating a reference to the class AuthGuard, which will allow us to check if the user is logged in. If not, it redirects to the login page. In the next section, I will show you how to create this class.

Now, all we need to do is create the menu. Remember in the layout section when we created the left-panel.component.html file to look like this?

<nav>
    <a routerLink="/dashboard">Dashboard</a>
    <a routerLink="/users">Users</a>
  </nav>

Here is where our code meets reality. Now we can build the code and test it in the URL: You should be able to navigate from the Dashboard page to Users, but what happens if you type the URL our.site.url/users in the browser directly?

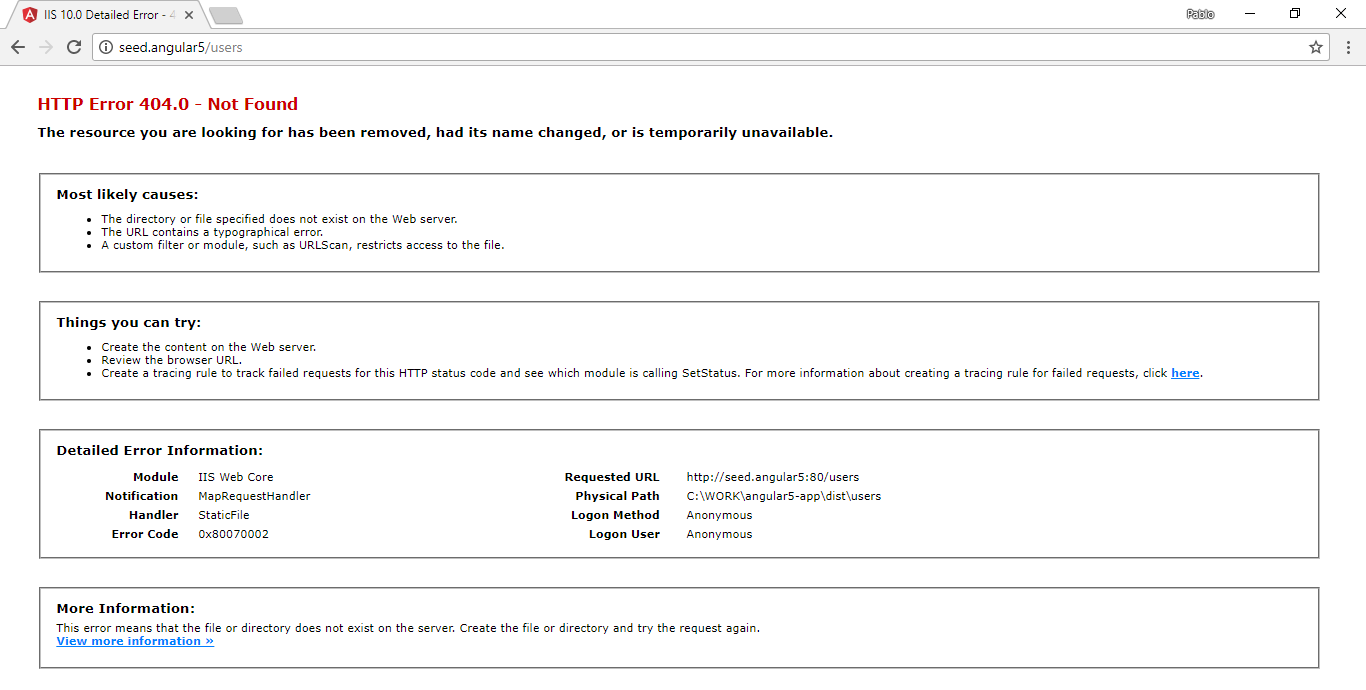

image alt text

Note that this error also appears if you refresh the browser after already successfully navigating to that URL via the app’s side panel. To understand this error, allow me to refer to the official docs where it is really clear:

A routed application should support deep links. A deep link is a URL that specifies a path to a component inside the app. For example, http://www.mysite.com/users/42 is a deep link to the hero detail page that displays the hero with id: 42.

There is no issue when the user navigates to that URL from within a running client. The Angular router interprets the URL and routes to that page and hero.

But clicking a link in an email, entering it in the browser address bar, or merely refreshing the browser while on the hero detail page — all of these actions are handled by the browser itself, outside the running application. The browser makes a direct request to the server for that URL, bypassing the router.

A static server routinely returns index.html when it receives a request for http://www.mysite.com/. But it rejects http://www.mysite.com/users/42 and returns a 404 - Not Found error unless it is configured to return index.html instead.

To fix this issue is very simple, we just need to create the service provider file configuration. Since I’m working with IIS here, I will show you how to do it in this environment, but the concept is similar for Apache or any other web server.

So we create a file inside inside the src folder called web.config that looks like this:

<?xml version="1.0"?>
<configuration>
  <system.webServer>
  <rewrite>
    <rules>
      <rule name="Angular Routes" stopProcessing="true">
        <match url=".*" />
        <conditions logicalGrouping="MatchAll">
          <add input="{REQUEST_FILENAME}" matchType="IsFile" negate="true" />
          <add input="{REQUEST_FILENAME}" matchType="IsDirectory" negate="true" />
        </conditions>
        <action type="Rewrite" url="/index.html" />
      </rule>
    </rules>
  </rewrite>
</system.webServer>
  <system.web>
    <compilation debug="true"/>
  </system.web>
</configuration>

Then we need to be sure that this asset will be copied to the deployed folder. All we need to do is change our Angular CLI settings file angular-cli.json:

{
  "$schema": "./node_modules/@angular/cli/lib/config/schema.json",
  "project": {
    "name": "angular5-app"
  },
  "apps": [
    {
      "root": "src",
      "outDir": "dist",
      "assets": [
        "assets",
        "favicon.ico",
        "web.config" // or whatever equivalent is required by your web server
      ],
      "index": "index.html",
      "main": "main.ts",
      "polyfills": "polyfills.ts",
      "test": "test.ts",
      "tsconfig": "tsconfig.app.json",
      "testTsconfig": "tsconfig.spec.json",
      "prefix": "app",
      "styles": [
        "styles.css"
      ],
      "scripts": [],
      "environmentSource": "environments/environment.ts",
      "environments": {
        "dev": "environments/environment.ts",
        "prod": "environments/environment.prod.ts"
      }
    }
  ],
  "e2e": {
    "protractor": {
      "config": "./protractor.conf.js"
    }
  },
  "lint": [
    {
      "project": "src/tsconfig.app.json",
      "exclude": "**/node_modules/**"
    },
    {
      "project": "src/tsconfig.spec.json",
      "exclude": "**/node_modules/**"
    },
    {
      "project": "e2e/tsconfig.e2e.json",
      "exclude": "**/node_modules/**"
    }
  ],
  "test": {
    "karma": {
      "config": "./karma.conf.js"
    }
  },
  "defaults": {
    "styleExt": "css",
    "component": {}
  }
}

Authentication

Do you remember how we had the class AuthGuard implemented to set the routing configuration? Every time we navigate to a different page we will use this class to verify if the user is authenticated with a token. If not, we’ll redirect automatically to the login page. The file for this is canActivateAuthGuard.ts—create it inside the helpers folder and have it look like this:

import { CanActivate, Router } from '@angular/router';
import { Injectable } from '@angular/core';
import { Observable } from 'rxjs/Observable';
import { Helpers } from './helpers';
import { ActivatedRouteSnapshot, RouterStateSnapshot } from '@angular/router';
@Injectable()
export class AuthGuard implements CanActivate {
  constructor(private router: Router, private helper: Helpers) {}
  canActivate(route: ActivatedRouteSnapshot, state: RouterStateSnapshot): Observable<boolean> | boolean {
    if (!this.helper.isAuthenticated()) {
      this.router.navigate(['/login']);
      return false;
    }
    return true;
  }
}

So every time we change the page the method canActivate will be called, which will check if the user is authenticated, and if not, we use our Router instance to redirect to the login page. But what is this new method on the Helper class? Under the helpers folder let’s create a file helpers.ts. Here we need to manage localStorage, where we will store the token we get from the back end.

Note

Regarding localStorage, you can also use cookies or sessionStorage, and the decision will depend on the behavior we want to implement. As the name suggests, sessionStorage is only available for the duration of the browser session, and is deleted when the tab or window is closed; it does, however, survive page reloads. If the data you are storing needs to be available on an ongoing basis, then localStorage is preferable to sessionStorage. Cookies are primarily for reading server-side, whereas localStorage can only be read client-side. So the question is, in your app, who needs this data---the client or the server?


import { Injectable } from '@angular/core';
import { Observable } from 'rxjs';
import { Subject } from 'rxjs/Subject';
@Injectable()
export class Helpers  {
    private authenticationChanged = new Subject<boolean>();
    constructor() {
    }
    public isAuthenticated():boolean {
        return (!(window.localStorage['token'] === undefined ||
            window.localStorage['token'] === null ||
            window.localStorage['token'] === 'null' ||
            window.localStorage['token'] === 'undefined' ||
            window.localStorage['token'] === ''));
    }
    public isAuthenticationChanged():any {
        return this.authenticationChanged.asObservable();
    }
    public getToken():any {
        if( window.localStorage['token'] === undefined ||
            window.localStorage['token'] === null ||
            window.localStorage['token'] === 'null' ||
            window.localStorage['token'] === 'undefined' ||
            window.localStorage['token'] === '') {
            return '';
        }
        let obj = JSON.parse(window.localStorage['token']);
        return obj.token;
    }
    public setToken(data:any):void {
        this.setStorageToken(JSON.stringify(data));
    }
    public failToken():void {
        this.setStorageToken(undefined);
    }
    public logout():void {
        this.setStorageToken(undefined);
    }
    private setStorageToken(value: any):void {
        window.localStorage['token'] = value;
        this.authenticationChanged.next(this.isAuthenticated());
    }
}

Is our authentication code making sense now? We’ll come back to the Subject class later, but right now let’s circle back for a minute to the routing configuration. Take a look at this line:

 { path: 'logout', component: LogoutComponent},

This is our component to log out of the site, and it’s just a simple class to clean out the localStorage. Let’s create it under the components/login folder with the name of logout.component.ts:

import { Component, OnInit } from '@angular/core';
import { Router } from '@angular/router';
import { Helpers } from '../../helpers/helpers';
@Component({
  selector: 'app-logout',
  template:'<ng-content></ng-content>'
})
export class LogoutComponent implements OnInit {
  constructor(private router: Router, private helpers: Helpers) { }
  ngOnInit() {
    this.helpers.logout();
    this.router.navigate(['/login']);
  }
}

So every time we go to the URL /logout, the localStorage will be removed and the site will redirect to the login page. Finally, let’s create login.component.ts like this:

import { Component, OnInit } from '@angular/core';
import { Router } from '@angular/router';
import { TokenService } from '../../services/token.service';
import { Helpers } from '../../helpers/helpers';
@Component({
  selector: 'app-login',
  templateUrl: './login.component.html',
  styleUrls: [ './login.component.css' ]
})
export class LoginComponent implements OnInit {
  constructor(private helpers: Helpers, private router: Router, private tokenService: TokenService) { }
  ngOnInit() {
  }
  login(): void {
    let authValues = {"Username":"pablo", "Password":"secret"};
    this.tokenService.auth(authValues).subscribe(token => {
      this.helpers.setToken(token);
      this.router.navigate(['/dashboard']);
    });
  }
}

As you can see, for the moment we’ve hard-coded our credentials here. Note that here we are calling a service class; we will create these services classes to get access to our back end in the next section.

Finally, we need to go back to the app.component.ts file, the layout of the site. Here, if the user is authenticated, it will show the menu and header sections, but if not, the layout will change to show just our login page.

export class AppComponent implements AfterViewInit {
  subscription: Subscription;
  authentication: boolean;
  constructor(private helpers: Helpers) {
  }
  ngAfterViewInit() {
    this.subscription = this.helpers.isAuthenticationChanged().pipe(
      startWith(this.helpers.isAuthenticated()),
      delay(0)).subscribe((value) =>
        this.authentication = value
      );
  }
  title = 'Angular 5 Seed';
  ngOnDestroy() {
    this.subscription.unsubscribe();
  }
}

Remember the Subject class in our helper class? This is an Observable. Observables provide support for passing messages between publishers and subscribers in your application. Every time the authentication token changes, the authentication property will be updated. Reviewing the app.component.html file, it will probably make more sense now:

<div *ngIf="authentication">
  <app-head></app-head>
  <button type="button" mat-button (click)="drawer.toggle()">
    Menu
  </button>
  <mat-drawer-container class="example-container" autosize>
    <mat-drawer #drawer class="example-sidenav" mode="side">
      <app-left-panel></app-left-panel>
    </mat-drawer>
    <div>
      <router-outlet></router-outlet>
    </div>
  </mat-drawer-container>
</div>
<div *ngIf="!authentication"><app-login></app-login></div>

Services

At this point we are navigating to different pages, authenticating our client side, and rendering a very simple layout. But how we can get data from the back end? I strongly recommend doing all back-end access from service classes in particular. Our first service will be inside the services folder, called token.service.ts:

import { Injectable } from '@angular/core';
import { HttpClient, HttpHeaders } from '@angular/common/http';
import { Observable } from 'rxjs/Observable';
import { of } from 'rxjs/observable/of';
import { catchError, map, tap } from 'rxjs/operators';
import { AppConfig } from '../config/config';
import { BaseService } from './base.service';
import { Token } from '../models/token';
import { Helpers } from '../helpers/helpers';
@Injectable()
export class TokenService extends BaseService {
  private pathAPI = this.config.setting['PathAPI'];
  public errorMessage: string;
  constructor(private http: HttpClient, private config: AppConfig, helper: Helpers) { super(helper); }
  auth(data: any): any {
    let body = JSON.stringify(data);
    return this.getToken(body);
  }
  private getToken (body: any): Observable<any> {
    return this.http.post<any>(this.pathAPI + 'token', body, super.header()).pipe(
        catchError(super.handleError)
      );
  }
}

The first call to the back end is a POST call to the token API. The token API does not need the token string in the header, but what happen if we call another endpoint? As you can see here, TokenService (and service classes in general) inherit from the BaseService class. Let’s take a look at this:

import { Injectable } from '@angular/core';
import { HttpClient, HttpHeaders } from '@angular/common/http';
import { Observable } from 'rxjs/Observable';
import { of } from 'rxjs/observable/of';
import { catchError, map, tap } from 'rxjs/operators';
import { Helpers } from '../helpers/helpers';
@Injectable()
export class BaseService {
    constructor(private helper: Helpers) { }
    public extractData(res: Response) {
        let body = res.json();
        return body || {};
      }
      public handleError(error: Response | any) {
        // In a real-world app, we might use a remote logging infrastructure
        let errMsg: string;
        if (error instanceof Response) {
          const body = error.json() || '';
          const err = body || JSON.stringify(body);
          errMsg = `${error.status} - ${error.statusText || ''} ${err}`;
        } else {
          errMsg = error.message ? error.message : error.toString();
        }
        console.error(errMsg);
        return Observable.throw(errMsg);
    }
      public header() {
        let header = new HttpHeaders({ 'Content-Type': 'application/json' });
        if(this.helper.isAuthenticated()) {
          header = header.append('Authorization', 'Bearer ' + this.helper.getToken());
        }
        return { headers: header };
      }
      public setToken(data:any) {
        this.helper.setToken(data);
      }
      public failToken(error: Response | any) {
        this.helper.failToken();
        return this.handleError(Response);
      }
 }

So every time we make an HTTP call, we implement the header of the request just using super.header. If the token is in localStorage then it will be appended inside the header, but if not, we will just set the JSON format. Another thing we can see here is what happens if authentication fails.

The login component will call the service class and the service class will call the back end. Once we have the token, the helper class will manage the token, and now we are ready to get the list of users from our database.

To get data from the database, first be sure we match the model classes with the back-end view models in our response.

In user.ts:

export class User {
  id: number;
  name: string;
}

And we can create now the user.service.ts file:

import { Injectable } from '@angular/core';
import { HttpClient, HttpHeaders } from '@angular/common/http';
import { Observable } from 'rxjs/Observable';
import { of } from 'rxjs/observable/of';
import { catchError, map, tap } from 'rxjs/operators';
import { BaseService } from './base.service';
import { User } from '../models/user';
import { AppConfig } from '../config/config';
import { Helpers } from '../helpers/helpers';
@Injectable()
export class UserService extends BaseService {
  private pathAPI = this.config.setting['PathAPI'];
  constructor(private http: HttpClient, private config: AppConfig, helper: Helpers) { super(helper); }
  /** GET heroes from the server */
  getUsers (): Observable<User[]> {
    return this.http.get(this.pathAPI + 'user', super.header()).pipe(
    catchError(super.handleError));
  }

The Back End

Quick Start

Welcome to the first step of our Web API Core 2 application. The first thing we need is to create an ASP.NET Core Web Application, which we will call SeedAPI.Web.API.

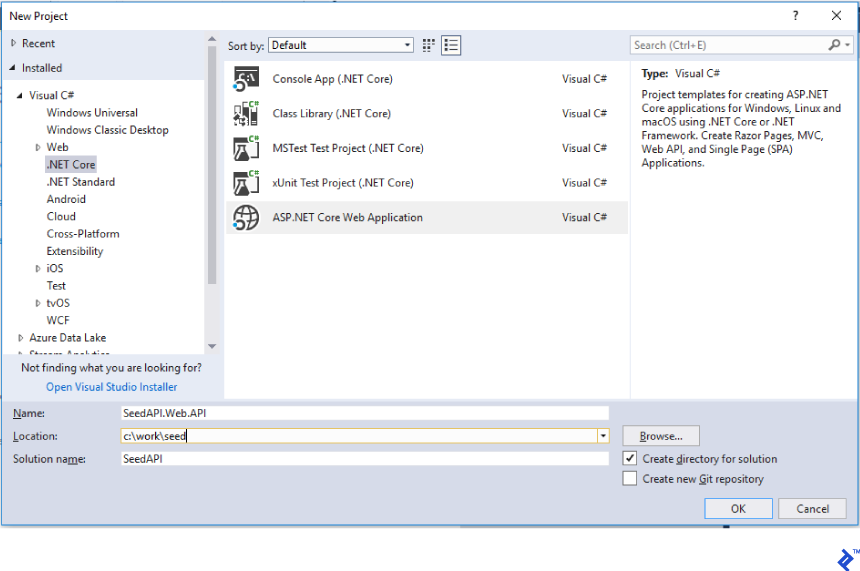

Creating a new file

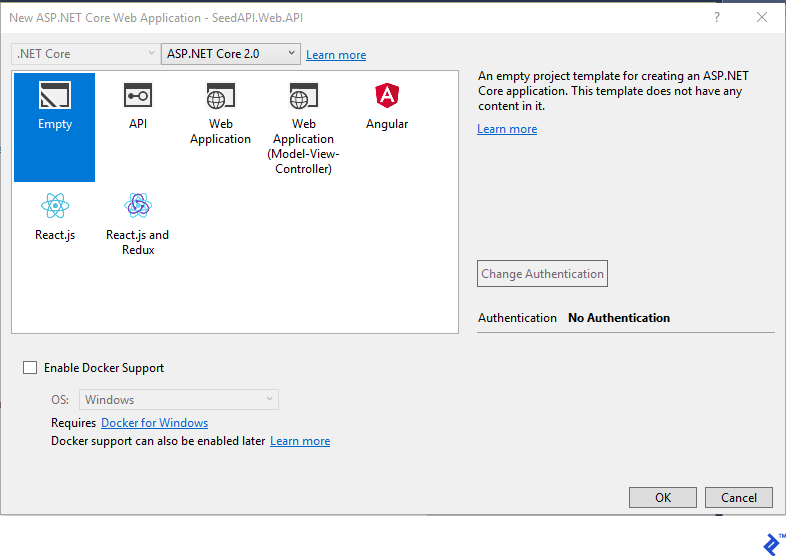

Be sure to choose the Empty template for a clean start like you can see below:

choose the Empty template

That’s all, we create the solution starting with an empty web application. Now our architecture will be as we list below so will have to create the different projects:

our current architecture

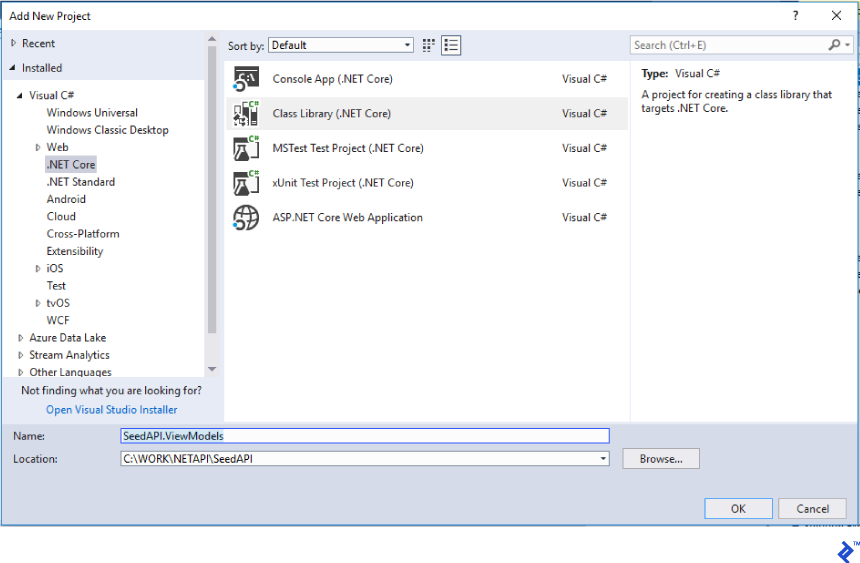

To do this, for each one just right-click the Solution and add a “Class Library (.NET Core)” project.

add a "Class Library (.NET Core)"

The Architecture

In the previous section we created eight projects, but what are they for? Here is a simple description of each one:

  • Web.API: This is our startup project and where endpoints are created. Here we will set up JWT, injection dependencies, and controllers.
  • ViewModels: Here we perform conversions from the type of data that controllers will return in the responses to the front end. It is a good practice to match these classes with the front-end models.
  • Interfaces: This will be helpful in implementing injection dependencies. The compelling benefit of a statically typed language is that the compiler can help verify that a contract which your code relies upon is actually met.
  • Commons: All the shared behaviors and utility code will be here.
  • Models: It is a good practice not to match the database directly with the front-end-facing ViewModels, so the purpose of Models is to create entity database classes independent of the front end. That will allow us in future to change our database without necessarily having an impact on our front end. It also helps when we simply want to do some refactoring.
  • Maps: Here is where we map ViewModels to Models and vice-versa. This step is called between controllers and Services.
  • Services: A library to store all the business logic.
  • Repositories: This is the only place where we call the database.

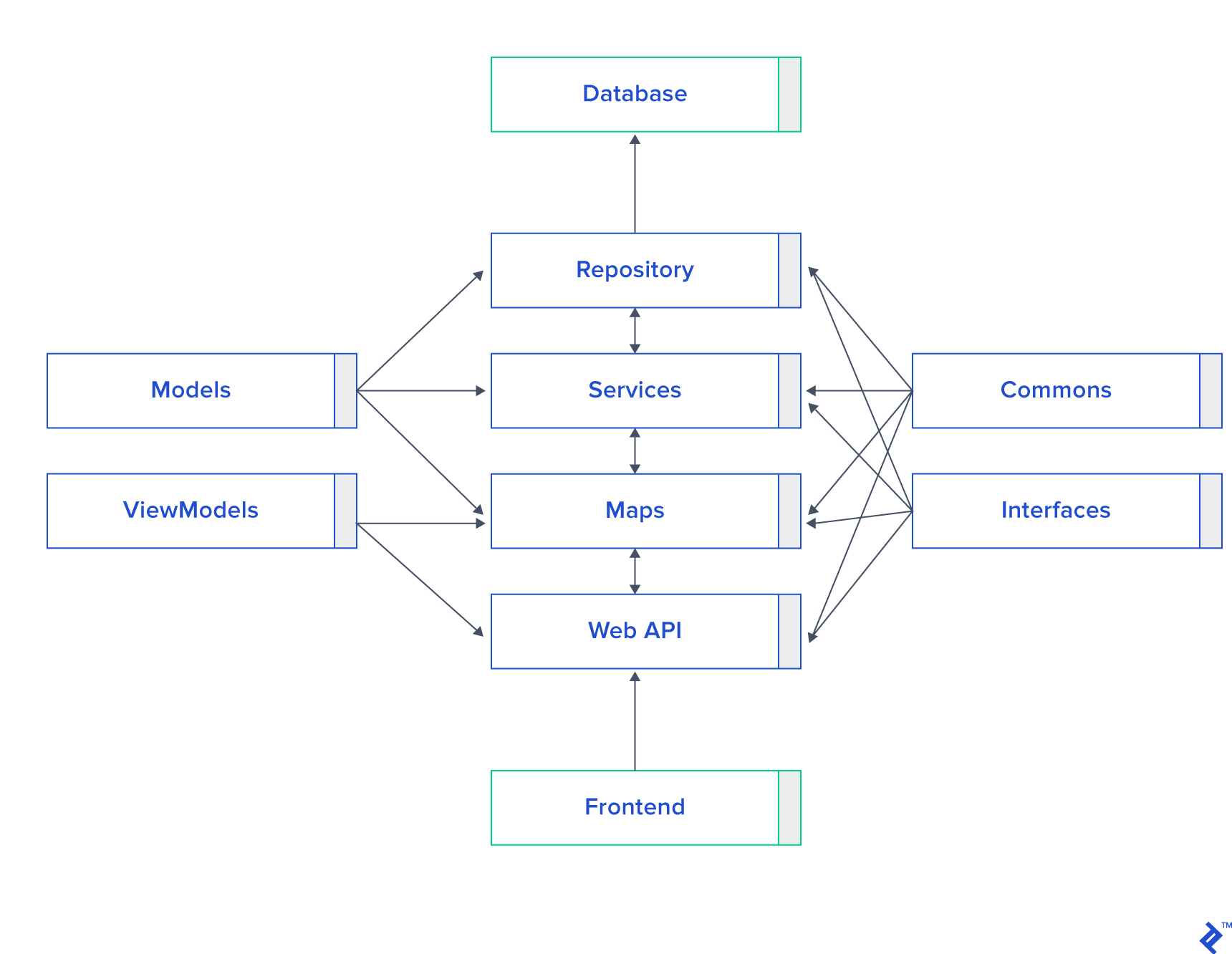

The references will look like this:

Diagram of references

JWT-based Authentication

In this section, we will see the basic configuration of token authentication and go a bit deeper on the subject of security.

To start setting the JSON web token (JWT) let’s create the next class inside the App_Start folder called JwtTokenConfig.cs. The code inside will look like this:

namespace SeedAPI.Web.API.App_Start
{
    public class JwtTokenConfig
    {
        public static void AddAuthentication(IServiceCollection services, IConfiguration configuration)
        {
            services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
            .AddJwtBearer(options =>
            {
                options.TokenValidationParameters = new TokenValidationParameters
                {
                    ValidateIssuer = true,
                    ValidateAudience = true,
                    ValidateLifetime = true,
                    ValidateIssuerSigningKey = true,
                    ValidIssuer = configuration["Jwt:Issuer"],
                    ValidAudience = configuration["Jwt:Issuer"],
                    IssuerSigningKey = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(configuration["Jwt:Key"]))
                };
                services.AddCors();
            });
        }
    }
}

The values of the validation parameters will depend on the requirement of each project. The valid user and audience we can set reading the configuration file appsettings.json:

"Jwt": {
    "Key": "veryVerySecretKey",
    "Issuer": "http://localhost:50498/"
  }

Then we need only call it from the ConfigureServices method in startup.cs:

 // This method gets called by the runtime. Use this method to add services to the container.
        public void ConfigureServices(IServiceCollection services)
        {
            DependencyInjectionConfig.AddScope(services);
            JwtTokenConfig.AddAuthentication(services, Configuration);
            DBContextConfig.Initialize(services, Configuration);
            services.AddMvc();
        }

Now we are ready to create our first controller called TokenController.cs. The value we set in appsettings.json to "veryVerySecretKey" should match the one we use to create the token, but first, let’s create the LoginViewModel inside our ViewModels project:

namespace SeedAPI.ViewModels
{
    public class LoginViewModel : IBaseViewModel
    {
        public string username { get; set; }
        public string password { get; set; }
    }
}

And finally the controller:

namespace SeedAPI.Web.API.Controllers
{
    [Route("api/Token")]
    public class TokenController : Controller
    {
        private IConfiguration _config;
        public TokenController(IConfiguration config)
        {
            _config = config;
        }
        [AllowAnonymous]
        [HttpPost]
        public dynamic Post([FromBody]LoginViewModel login)
        {
            IActionResult response = Unauthorized();
            var user = Authenticate(login);
            if (user != null)
            {
                var tokenString = BuildToken(user);
                response = Ok(new { token = tokenString });
            }
            return response;
        }
        private string BuildToken(UserViewModel user)
        {
            var key = new SymmetricSecurityKey(Encoding.UTF8.GetBytes(_config["Jwt:Key"]));
            var creds = new SigningCredentials(key, SecurityAlgorithms.HmacSha256);
            var token = new JwtSecurityToken(_config["Jwt:Issuer"],
              _config["Jwt:Issuer"],
              expires: DateTime.Now.AddMinutes(30),
              signingCredentials: creds);
            return new JwtSecurityTokenHandler().WriteToken(token);
        }
        private UserViewModel Authenticate(LoginViewModel login)
        {
            UserViewModel user = null;
            if (login.username == "pablo" && login.password == "secret")
            {
                user = new UserViewModel { name = "Pablo" };
            }
            return user;
        }
    }
}

The BuildToken method will create the token with the given security code. The Authenticate method just has user validation hard-coded for the moment, but we will need to call the database to validate it in the end.

The Application Context

Setting up Entity Framework is really easy since Microsoft launched the Core 2.0 version—EF Core 2 for short. We are going to go into depth with a code-first model using identityDbContext, so first be sure you have installed all the dependencies. You can use NuGet to manage it:

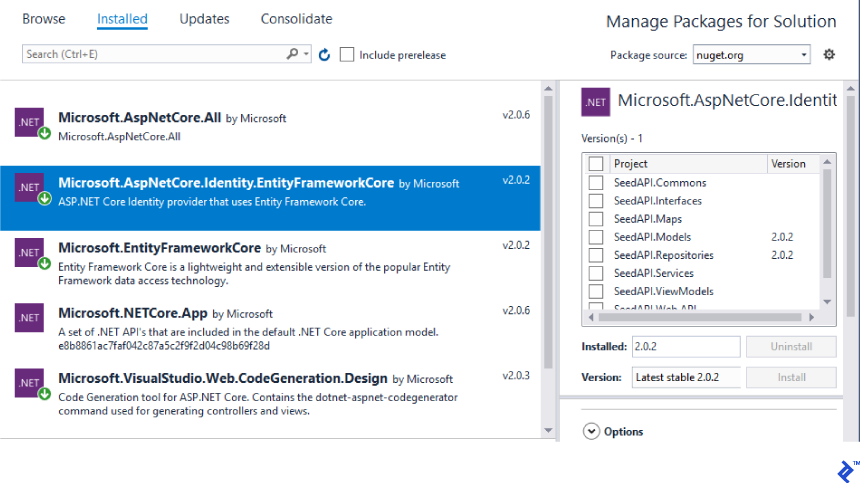

Getting dependencies

Using the Models project we can create here inside the Context folder two files, ApplicationContext.cs and IApplicationContext.cs. Also, we will need an EntityBase class.

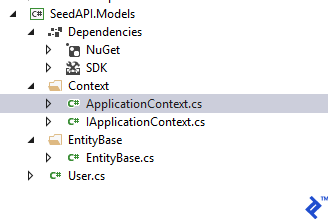

Classes

The EntityBase files will be inherited by each entity model, but User.cs is an identity class and the only entity that will inherit from IdentityUser. Below are both classes:

namespace SeedAPI.Models
{
    public class User : IdentityUser
    {
        public string Name { get; set; }
    }
}
namespace SeedAPI.Models.EntityBase
{
    public class EntityBase
    {
        public DateTime? Created { get; set; }
        public DateTime? Updated { get; set; }
        public bool Deleted { get; set; }
        public EntityBase()
        {
            Deleted = false;
        }
        public virtual int IdentityID()
        {
            return 0;
        }
        public virtual object[] IdentityID(bool dummy = true)
        {
            return new List<object>().ToArray();
        }
    }
}

Now we are ready to create ApplicationContext.cs, which will look like this:

namespace SeedAPI.Models.Context
{
    public class ApplicationContext : IdentityDbContext<User>, IApplicationContext
    {
        private IDbContextTransaction dbContextTransaction;
        public ApplicationContext(DbContextOptions options)
            : base(options)
        {
                   }
        public DbSet<User> UsersDB { get; set; }
        public new void SaveChanges()
        {
            base.SaveChanges();
        }
        public new DbSet<T> Set<T>() where T : class
        {
            return base.Set<T>();
        }
        public void BeginTransaction()
        {
            dbContextTransaction = Database.BeginTransaction();
        }
        public void CommitTransaction()
        {
            if (dbContextTransaction != null)
            {
                dbContextTransaction.Commit();
            }
        }
        public void RollbackTransaction()
        {
            if (dbContextTransaction != null)
            {
                dbContextTransaction.Rollback();
            }
        }
        public void DisposeTransaction()
        {
            if (dbContextTransaction != null)
            {
                dbContextTransaction.Dispose();
            }
        }
    }
}

We are really close, but first we, will need to create more classes, this time in the App_Start folder located in the Web.API project. The first class is to initialize the application context and the second one is to create sample data just for the purpose of testing during development.

namespace SeedAPI.Web.API.App_Start
{
    public class DBContextConfig
    {
        public static void Initialize(IConfiguration configuration, IHostingEnvironment env, IServiceProvider svp)
        {
            var optionsBuilder = new DbContextOptionsBuilder();
            if (env.IsDevelopment()) optionsBuilder.UseSqlServer(configuration.GetConnectionString("DefaultConnection"));
            else if (env.IsStaging()) optionsBuilder.UseSqlServer(configuration.GetConnectionString("DefaultConnection"));
            else if (env.IsProduction()) optionsBuilder.UseSqlServer(configuration.GetConnectionString("DefaultConnection"));
            var context = new ApplicationContext(optionsBuilder.Options);
            if(context.Database.EnsureCreated())
            {
                IUserMap service = svp.GetService(typeof(IUserMap)) as IUserMap;
                new DBInitializeConfig(service).DataTest();
            }
        }
        public static void Initialize(IServiceCollection services, IConfiguration configuration)
        {
            services.AddDbContext<ApplicationContext>(options =>
              options.UseSqlServer(configuration.GetConnectionString("DefaultConnection")));
        }
    }
}
namespace SeedAPI.Web.API.App_Start
{
    public class DBInitializeConfig
    {
        private IUserMap userMap;
        public DBInitializeConfig (IUserMap _userMap)
        {
            userMap = _userMap;
        }
        public void DataTest()
        {
            Users();
        }
        private void Users()
        {
            userMap.Create(new UserViewModel() { id = 1, name = "Pablo" });
            userMap.Create(new UserViewModel() { id = 2, name = "Diego" });
        }
    }
}

And we call them from our startup file:

 // This method gets called by the runtime. Use this method to add services to the container.
        public void ConfigureServices(IServiceCollection services)
        {
            DependencyInjectionConfig.AddScope(services);
            JwtTokenConfig.AddAuthentication(services, Configuration);
            DBContextConfig.Initialize(services, Configuration);
            services.AddMvc();
        }
// ...
 // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
        public void Configure(IApplicationBuilder app, IHostingEnvironment env, IServiceProvider svp)
        {
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }
            DBContextConfig.Initialize(Configuration, env, svp);
            app.UseCors(builder => builder
                .AllowAnyOrigin()
                .AllowAnyMethod()
                .AllowAnyHeader()
                .AllowCredentials());
            app.UseAuthentication();
            app.UseMvc();
        }

Dependency Injection

It is a good practice to use dependency injection to move among different projects. This will help us to communicate between controllers and mappers, mappers and services, and services and repositories.

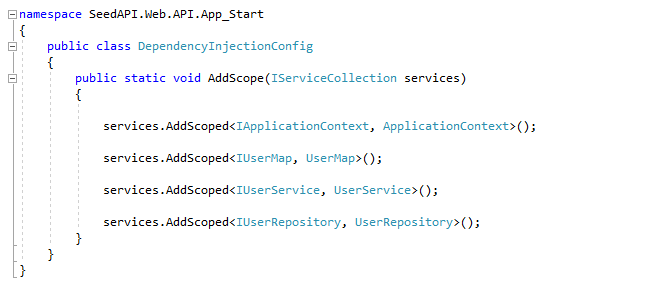

Inside the folder App_Start we will create the file DependencyInjectionConfig.cs and it will look like this:

namespace SeedAPI.Web.API.App_Start
{
    public class DependencyInjectionConfig
    {
        public static void AddScope(IServiceCollection services)
        {
            services.AddScoped<IApplicationContext, ApplicationContext>();
            services.AddScoped<IUserMap, UserMap>();
            services.AddScoped<IUserService, UserService>();
            services.AddScoped<IUserRepository, UserRepository>();
        }
    }
}

image alt text

We will need to create for each new entity a new Map, Service, and Repository, and match them to this file. Then we just need to call it from the startup.cs file:

// This method gets called by the runtime. Use this method to add services to the container.
        public void ConfigureServices(IServiceCollection services)
        {
            DependencyInjectionConfig.AddScope(services);
            JwtTokenConfig.AddAuthentication(services, Configuration);
            DBContextConfig.Initialize(services, Configuration);
            services.AddMvc();
        }

Finally, when we need to get the users list from the database, we can create a controller using this dependency injection:

namespace SeedAPI.Web.API.Controllers
{
    [Route("api/[controller]")]
    [Authorize]
    public class UserController : Controller
    {
        IUserMap userMap;
        public UserController(IUserMap map)
        {
            userMap = map;
        }
        // GET api/user
        [HttpGet]
        public IEnumerable<UserViewModel> Get()
        {
            return userMap.GetAll(); ;
        }
        // GET api/user/5
        [HttpGet("{id}")]
        public string Get(int id)
        {
            return "value";
        }
        // POST api/user
        [HttpPost]
        public void Post([FromBody]string user)
        {
        }
        // PUT api/user/5
        [HttpPut("{id}")]
        public void Put(int id, [FromBody]string user)
        {
        }
        // DELETE api/user/5
        [HttpDelete("{id}")]
        public void Delete(int id)
        {
        }
    }
}

Look how the Authorize attribute is present here to be sure that the front end has logged in and how dependency injection works in the constructor of the class.

We finally have a call to the database but first, we need to understand the Map project.

The Maps Project

This step is just to map ViewModels to and from database models. We must create one for each entity, and, following our previous, example the UserMap.cs file will look like this:

namespace SeedAPI.Maps
{
    public class UserMap : IUserMap
    {
        IUserService userService;
        public UserMap(IUserService service)
        {
            userService = service;
        }
        public UserViewModel Create(UserViewModel viewModel)
        {
            User user = ViewModelToDomain(viewModel);
            return DomainToViewModel(userService.Create(user));
        }
        public bool Update(UserViewModel viewModel)
        {
            User user = ViewModelToDomain(viewModel);
            return userService.Update(user);
        }
        public bool Delete(int id)
        {
            return userService.Delete(id);
        }
        public List<UserViewModel> GetAll()
        {
            return DomainToViewModel(userService.GetAll());
        }
        public UserViewModel DomainToViewModel(User domain)
        {
            UserViewModel model = new UserViewModel();
            model.name = domain.Name;
            return model;
        }
        public List<UserViewModel> DomainToViewModel(List<User> domain)
        {
            List<UserViewModel> model = new List<UserViewModel>();
            foreach (User of in domain)
            {
                model.Add(DomainToViewModel(of));
            }
            return model;
        }
        public User ViewModelToDomain(UserViewModel officeViewModel)
        {
            User domain = new User();
            domain.Name = officeViewModel.name;
            return domain;
        }
    }
}

Looks like once more, dependency injection is working in the constructor of the class, linking Maps to the Services project.

The Services Project

There is not too much to say here: Our example is really simple and we don’t have business logic or code to write here. This project would prove useful in future advanced requirements when we need to calculate or do some logic before or after the database or controller steps. Following the example the class will look pretty bare:

namespace SeedAPI.Services
{
    public class UserService : IUserService
    {
        private IUserRepository repository;
        public UserService(IUserRepository userRepository)
        {
            repository = userRepository;
        }
        public User Create(User domain)
        {
            return repository.Save(domain);
        }
        public bool Update(User domain)
        {
            return repository.Update(domain);
        }
        public bool Delete(int id)
        {
            return repository.Delete(id);
        }
        public List<User> GetAll()
        {
            return repository.GetAll();
        }
    }
}

The Repositories Project

We’re getting to the last section of this tutorial: We just need to make calls to the database, so we create a UserRepository.cs file where we can read, insert, or update users in the database.

namespace SeedAPI.Repositories
{
    public class UserRepository : BaseRepository, IUserRepository
    {
        public UserRepository(IApplicationContext context)
            : base(context)
        { }
        public User Save(User domain)
        {
            try
            {
                var us = InsertUser<User>(domain);
                return us;
            }
            catch (Exception ex)
            {
                //ErrorManager.ErrorHandler.HandleError(ex);
                throw ex;
            }
        }
        public bool Update(User domain)
        {
            try
            {
                //domain.Updated = DateTime.Now;
                UpdateUser<User>(domain);
                return true;
            }
            catch (Exception ex)
            {
                //ErrorManager.ErrorHandler.HandleError(ex);
                throw ex;
            }
        }
        public bool Delete(int id)
        {
            try
            {
                User user = Context.UsersDB.Where(x => x.Id.Equals(id)).FirstOrDefault();
                if (user != null)
                {
                    //Delete<User>(user);
                    return true;
                }
                else
                {
                    return false;
                }
            }
            catch (Exception ex)
            {
                //ErrorManager.ErrorHandler.HandleError(ex);
                throw ex;
            }
        }
        public List<User> GetAll()
        {
            try
            {
                return Context.UsersDB.OrderBy(x => x.Name).ToList();
            }
            catch (Exception ex)
            {
                //ErrorManager.ErrorHandler.HandleError(ex);
                throw ex;
            }
        }
    }
}

Summary

In this article, I explained how to create a good architecture using Angular 5 and Web API Core 2. At this point, you’ve created the base for a big project with code that supports a large growth in requirements.

The truth is, nothing competes with JavaScript in the front end and what can compete with C# if you need the support of SQL Server and Entity Framework in the back end? So the idea of this article was to combine the best of two worlds and I hope you’ve enjoyed it.

What’s Next for Angular With .NET Core?

If you are working in a team of Angular developers probably there could be different developers working in the front end and the back end, so a good idea to synchronize the efforts of both teams could be integrating Swagger with Web API 2. Swagger is a great tool to document and test your RESTFul APIs. Read the Microsoft guide: Get started with Swashbuckle and ASP.NET Core.

If you’re still very new to Angular 5 and are having trouble following along, read An Angular 5 Tutorial: Step by Step Guide to Your First Angular 5 App by fellow Toptaler Sergey Moiseev. And while it’s not exactly an Angular C# tutorial, you can also check out Microsoft’s documentation in case you need to brush up your basic Angular/C# skills.

Understanding the basics

  • Should you use Visual Studio Code or Microsoft Visual Studio for front-end editing?

    You can use either IDE for the frontend, many people like to join the frontend into a Web Application Library and automate the deploy. I prefer to keep the front-end code separated from the back-end and found Visual Studio Code to be a really good tool, especially with intellisense, for Typescript code.

  • What is Angular material design, and should we use it or not?

    Angular Material is a UI component framework and while you’re not required to use it. UI Component frameworks help us to organize the layout and the responsive on the website but we have a lot of them in the market like bootstrap and other and we can choose the look and feel we prefer.

  • What is Angular routing and navigation?

    The Angular Router enables navigation from one view to the next as users perform application tasks. It can interpret a browser URL as an instruction to navigate to a client-generated view. The developer is allowed to set up URL names, parameters and contaminated with CanAuthenticate we can validate user authentica

  • What is the use of dependency injection in C#?

    Often classes need access to each other, and this design pattern demonstrates how to create loosely coupled classes. When two classes are tightly coupled, they are linked with a binary association.

  • What is JWT-based Authentication?

    JSON Web Token (JWT) is a compact library for securely transmitting information between parties as a JSON object. JWTs can be encrypted to also provide secrecy between parties, we will focus on signed tokens.

Hire a Toptal expert on this topic.
Hire Now
Pablo Albella

Pablo Albella

Verified Expert in Engineering

Málaga, Spain

Member since June 23, 2014

About the author

Pablo is a talented JavaScript and .NET developer. He successfully created numerous complex products over the past decade.

Read More
authors are vetted experts in their fields and write on topics in which they have demonstrated experience. All of our content is peer reviewed and validated by Toptal experts in the same field.

PREVIOUSLY AT

Globant

World-class articles, delivered weekly.

Subscription implies consent to our privacy policy

World-class articles, delivered weekly.

Subscription implies consent to our privacy policy

Join the Toptal® community.
